Planning Objects

Planning Objects

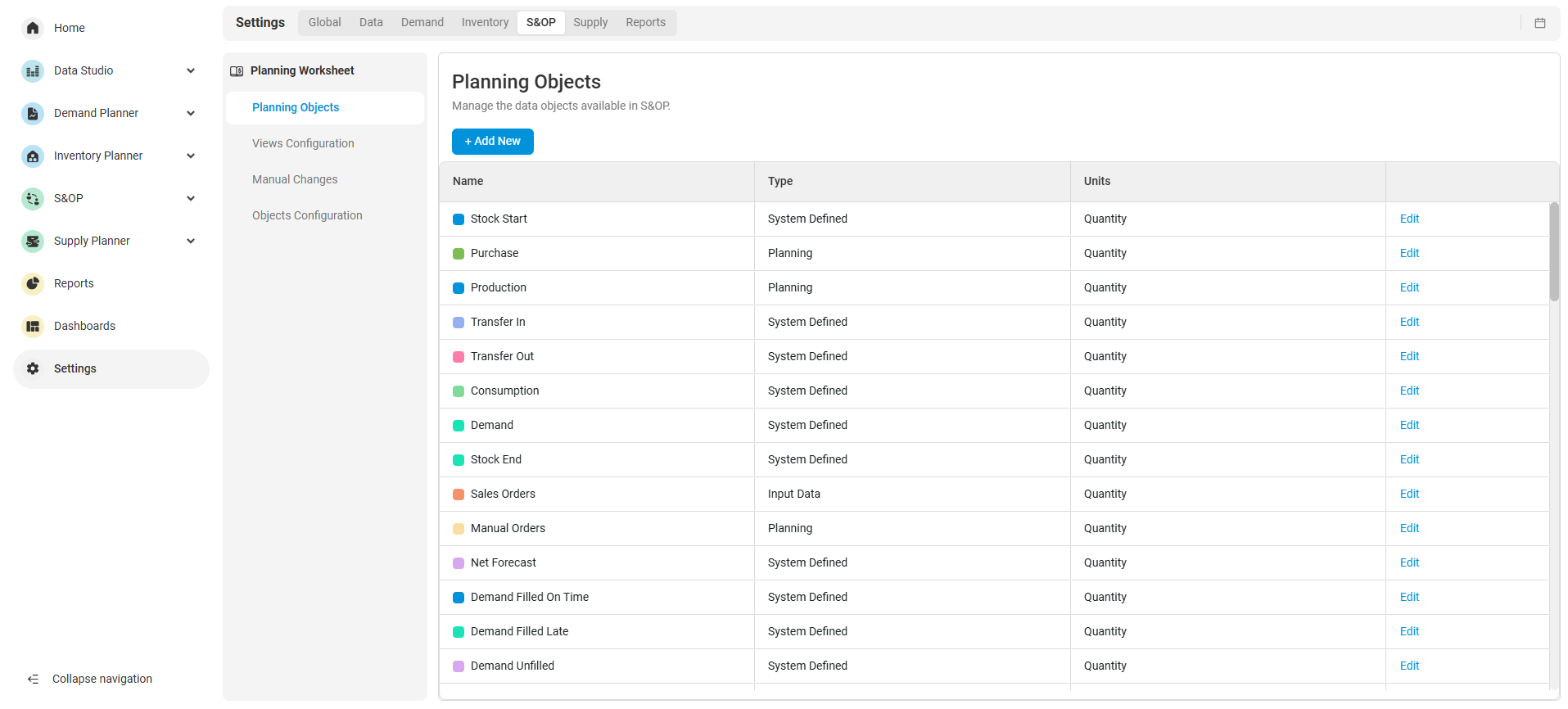

Manage the data objects available in S&OP from the Planning Objects section of the Settings module.




Add New Planning Objects

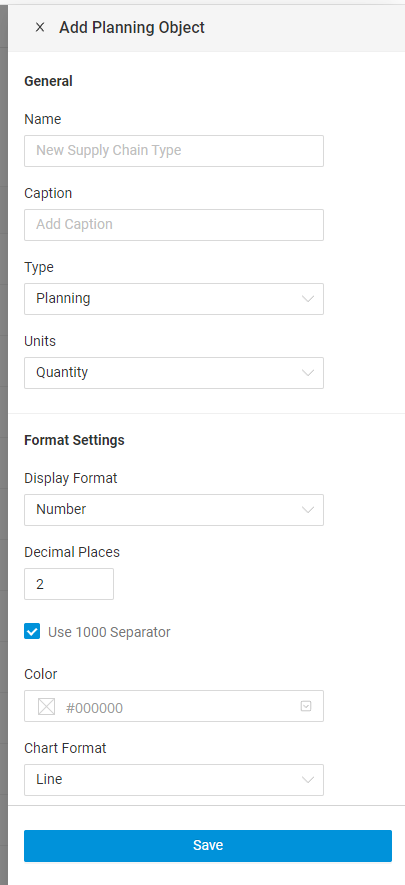

To add a new Planning Object for S&OP, first click the + Add New button. The Add Planning Object drawer will slide out.
Under the General section:
  1. Type the Name of the new planning object
  2. Type a Caption
  3. Select a Type from the dropdown (Planning or Calculated Quantity)
  4. Select a Unit from the dropdown (Quantity or Revenue)
Under the Format Settings section:
  1. Select a Display Format from the dropdown (Number, Percent, Accounting, Financial, or Currency)
  2. Type a value for how many Decimal places
  3. Check on or off Use 1000 Separator
  4. Select a Color
  5. Select a Chart Format (Line or Column)
Click Save when finished to complete creation of the new planning object.





List of Planning Objects

  1. Additions
  2. Assigned PO's
  3. Available To Promise
  4. Byproduct
  5. CO2 Production
  6. Component Consumption: Aggregates the total consumption needs over all components in the BOMs used for production when expanding the planning object in Planning Worksheet. Component Consumption only shows only shows in the Planning Worksheet when there are finished goods stock, and expanded will show the list of component stocks. When expanded shows the list of produced stocks. In Arkieva Classic RCCP document, this is 'Ingredient Consumption'.
  7. Consumption
  8. Contract Excess
  9. Contract Shortage
  10. Contract Volume
  11. Conversion Cost
  12. Days Coverage
  13. Demand
  14. Demand Expired
  15. Demand Filled From Supply In Same Period
  16. Demand Filled In Period
  17. Demand Filled Late
  18. Demand Filled On Time
  19. Demand Partially Filled
  20. Demand Unfilled
  21. Expired Stock: Shows the amount of stock expired during a given bucket. Stock Start/End are adjusted accordingly. The Where Used engine has been updated to only meet demand from stock that is of an appropriate age. Min Age Remaining Days added to the sales order import sheet. If a value is provided and shelf life is being used, demand will only be met if it has at least the min age remaining days before expiring. Shelf Life is set by Item, in the "Shelf Life" field for item import or master data editing. If no shelf life is provided, the where used engine will behave as normal for any transactions for that item.
  22. In Transit
  23. Ingredient Cost
  24. Inventory Cost
  25. Manual Orders
  26. Maximum Target
  27. Minimum Target
  28. Net Forecast
  29. Percent Recycled
  30. Production
  31. Purchase
  32. Purchase Cost
  33. Remaining Contract Volume
  34. Reorder Frequency
  35. Reorder Point
  36. Reorder Quantity
  37. Replenishment Value
  38. Revenue Filled On Time
  39. Revenue Filled On Time In Full
  40. Revenue In Jeopardy
  41. Revenue Lost
  42. Safety Stock
  43. Sales Backorder
  44. Sales Opportunity
  45. Sales Orders
  46. Sales Revenue
  47. Stock Adjustment
  48. Stock End
  49. Stock End With Lost Demand
  50. Stock Level With Lost Demand
  51. Stock Start
  52. Stock Start With Lost Demand
  53. Stock Substitution In
  54. Stock Substitution Out
  55. Supply Allocated To Late Demand
  56. Supply Buffer
  57. Supply Pegged To Consumption
  58. Supply Pegged To Demand
  59. Supply Pegged To Transfer Out
  60. Target Stock Violations Revenue
  61. Transfer In
  62. Transfer Out
  63. Transfer Out Infeasible
  64. Transport Cost
  65. Transport In Cost
  66. Transport Out Cost
  67. Unassigned PO's
  68. Waste Production
  69. Weeks Coverage
  70. Withdrawals
  71. Withdrawals Pegged
